BH-04-Mirco Electric Linear Actuator Small Motor 30mm/50mm/100mm/150mmStroke 30N/60N/90N/180N Motor For Remote Controls Automation Robotics,Cabinets Window Opener Robitcs

BH-04-Mirco Electric Linear Actuator 30mm/50mm/100mm/150mmStroke 30N/60N/90N/180N Motor For Remote Controls Automation Robotics,Small Electric Motor for Cabinets Window Opener Robitcs

Model :BH-04
1. Input: 12V DC /24V DC /6V DC
2. Load: Max 180N/18KG/39.64LBS
3. Max Speed 30mm per second
4. Limited switch: With
5. Duty cycle: 10%
6. Poduct Material: Metal and plastic
7.Worm Gear: Metal gear
8.Color: Black+Slivery
9.Stroke length : Max 200mm

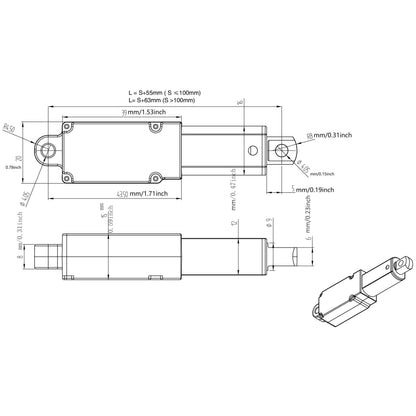

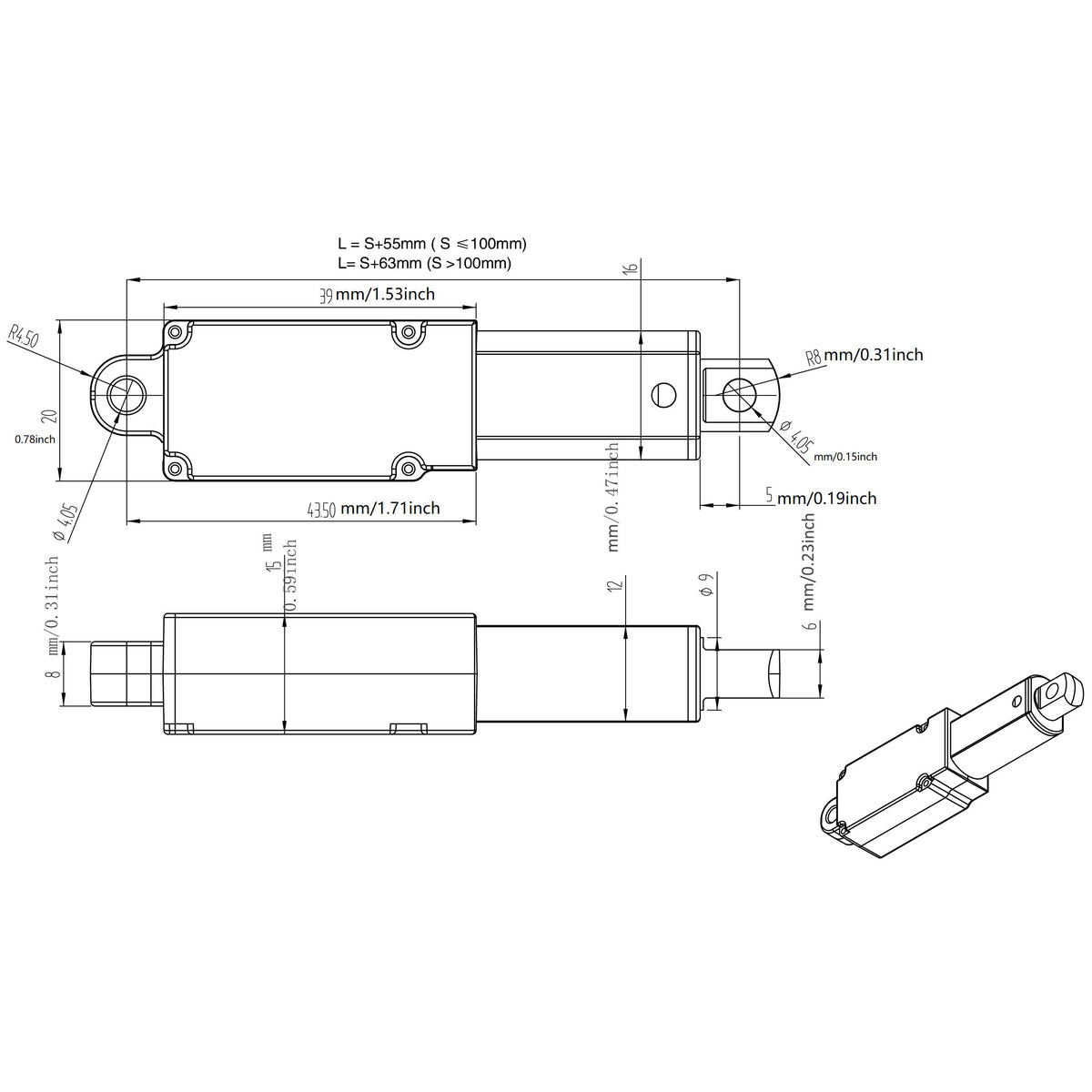

Lmin=55mm+Stroke

Lmin=63mm+Stroke
For example: If Sroke is 50mm,the normal Lmin is 55+50=105mm.

Lmin means the length when linear actuator 100% fully closed, meanwhile,it will touch the tail limited switch and stop automatically.

Stroke means the movement length of linear actuator.

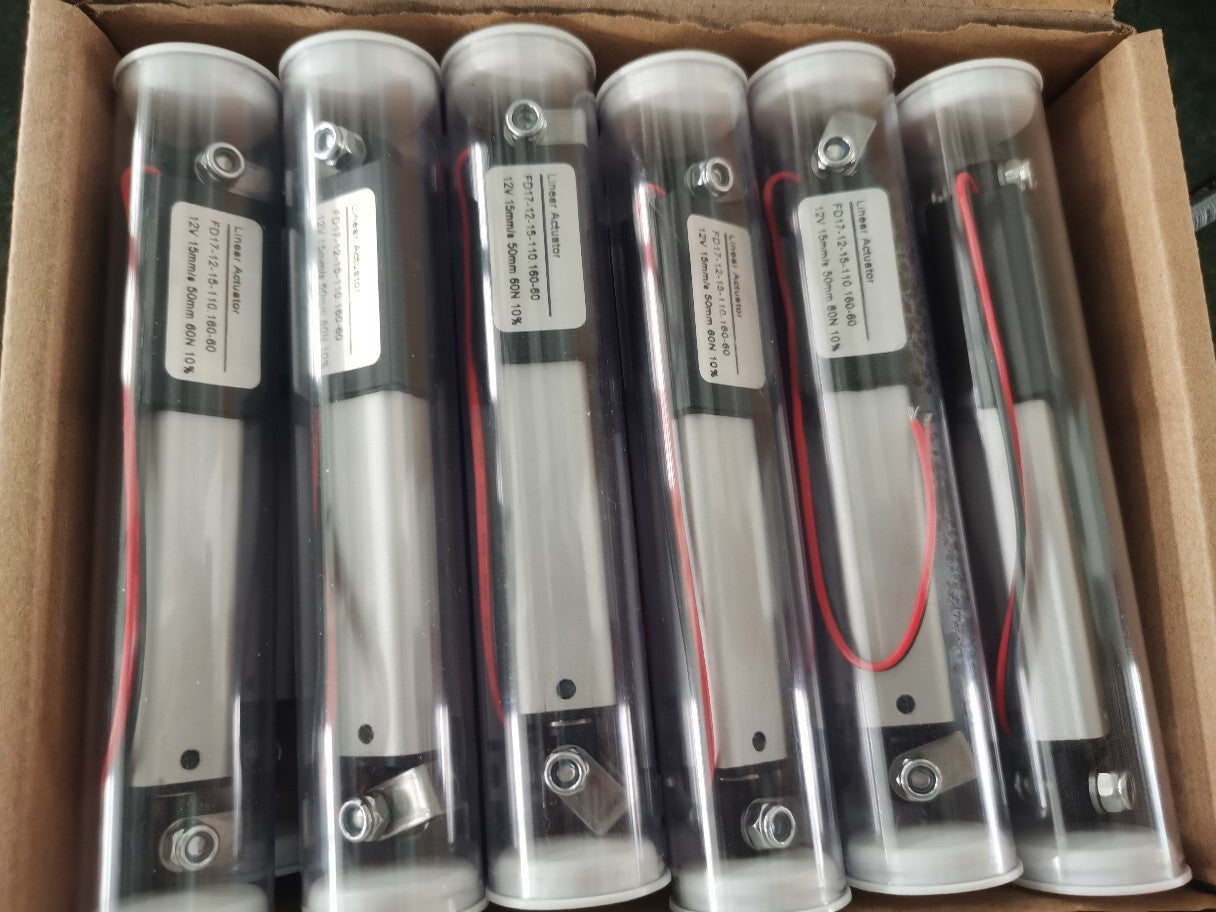

Package
